    TX81Z Programmer v1.20 WiN

    Team R2R | 2013.03.15 | 1.24 MB

    TX81Z Programmer and it is a software program that creates a computer-based interface for editing Yamaha’s TX81Z synthesizer module, and it makes editing the sounds and parameters a lot easier than doing it from magesy download the front panel. It also has a simple sysex librarian built-in, so you can keep all your patches in one place and organize them. The program is shareware, which means you can try it out for 30 days and if you’re not completely satisfied with it, you can just delete it off your hard drive with no further obligation. If you like it and want to use it you simply pay a small registration fee of $20 to me and I will email you a registration code which is good for all future releases of the program.

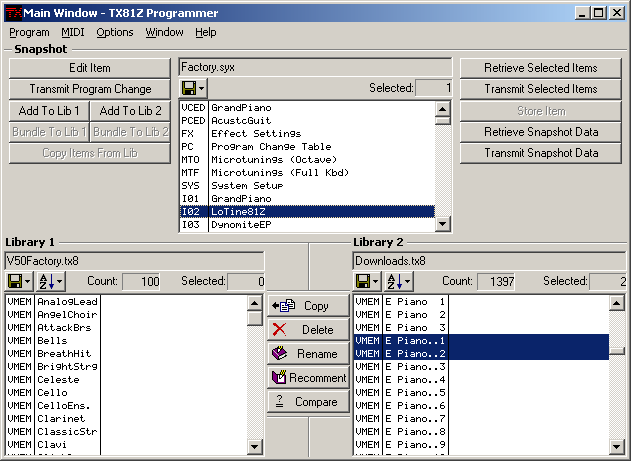

    It has three views so you can transfer data between them easily. At the top is the snapshot, which shows you what data has been received from magesy download the unit. Below that are two library windows where you can store items, copy them around, and give them comments (I don’t have any comments in the picture, but the blank space after the patch name is where the comment goes). A library is just a file that can store a large number of items.

    The snapshot is composed of the different items that can be edited in the unit. The VCED item at the top represents the voice edit buffer. Double clicking on that will open the voice editor:

    It’s a big window, but you can shrink it down and use scrollbars if you need to. All of the parameters for a single voice are in this window. It also has graphs of the EGs, menus that allow for manipulating multiple parameters and other editing features.

    Below the VCED in the snapshot is the PCED, the performance editor and this is where multi-voice performances can be set up for splitting and layering and so on:

    The TX81Z has some simple MIDI effects that can be used in performances and previewed in single voice mode. This editor is the editor that affects the effects:

    Unfortunately, not all of the patches on the TX81Z can be accessed with program changes, as the unit does not support bank change messages, but it does have a special program change table that allows you to map the 128 program numbers to whichever of the 184 voices and performances you want them to change to.

    The TX81Z can also be retuned for different scales. In the TX81Z Programmer this is done with the microtuning editors. The TX81Z can be microtuned by octave or the entire keyboard. This is a picture of the octave microtuning editor (the full keyboard editor looks the same):

    Finally, there’s the system setup editor, where you set up MIDI channels and other systemwide parameters

    TX81Z Programmer v1.20 WiN-R2R
